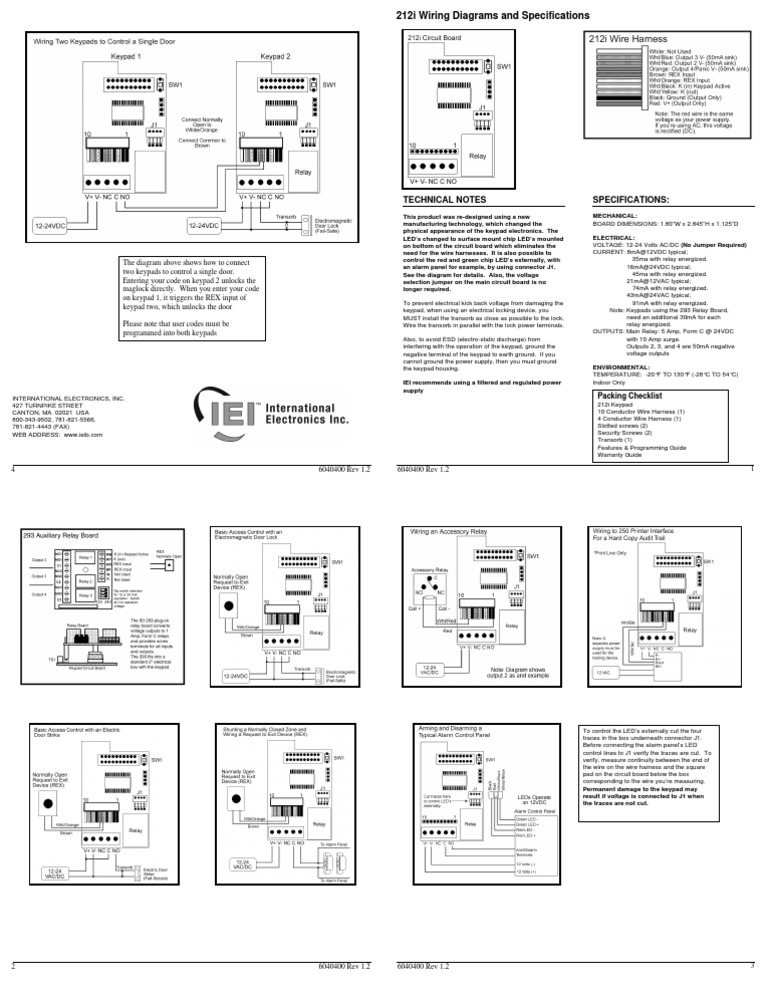

Iei 212 keypad wiring diagram. If you canton ma 02021 usa 800 343 9502 781 821 5566. Iei recommends using a filtered and regulated power supply warranty guide specifications. 212i wiring diagrams the diagram above shows how to connect two keypads to control a single door. 2 6040400 rev 12 pad on the circuit board below the box.

When you enter your code on keypad 1 it triggers the rex input of keypad two which unlocks the door. We have the cool resources for electrical wiring diagram house. Negative terminal of the keypad to earth ground. 212i wiring diagrams and specifications.

Plug this harness in with the leads facing down. From the thousands of images on the net with regards to iei keypad wiring diagram we choices the best series together with greatest resolution just for you all and this pictures is usually among graphics libraries in our finest pictures gallery regarding iei keypad wiring diagrami am hoping you will want it. When you enter your code on keypad 1 it triggers the rex input of keypad two which unlocks the door please note that user codes must be programmed into both keypads. Entering your code on keypad 2 unlocks the maglock directly.

Top iei home security experts brad brown. Optional 293 auxillary relay boar d wiring an accessory rela y technical note s to avoid esd electro static discharge from interfering with. The diagram above shows how to connect two keypads to control a single door. Entering your code on keypad 2 unlocks the.

Please note that user codes must be programmed into both keypads. 2 6041222 rev 10. Entering your code on keypad 2 unlocks the maglock directly. Check it out for yourself.

Here is required knowledge on. Doorgard command and control series keypads offer field proven reliability and cost effective. 212w wiring diagrams the diagram above shows how to connect two keypads to control a single door. 212 iw circuit boar d 212 iw wiring diagrams and specification s 212 iw wiring harnes s warning.
