Hr Diagram Constant Radius

Use the boxed equations to argue that isoradius lines on the hr diagram must be parallel lines.

Hr diagram constant radius. It is important to note that the location of a star on the h r. Here is an hr diagram of all 15 of the brightest stars in the sky visible in the united states as well as other interesting stars. The present motions of the planets were inherited from the rotation of the solar nebula. Complete the table below.

On the h r diagram lines of constant radius slants down from left to right. Open the interactive h r diagramnote that the red x appears initially at the position where the sun resides. So the h r diagram can tell us something about the size radius of the stars. The hr diagram is a log log plot of the solar units equation lr2t4.

The standard stefan boltzmann law is for point sources an idealized case. Continue drawing several more lines of constant radius or size on your h r diagram following the established pattern where each line represents a change of radius by a factor of 10 as before until you have encompassed all the labeled stars on your diagram. For example consider stars with a radius equal to that of the sun r. The astronomy department from the university of nebraska lincoln hosts a great website with various educational resources one of which is a very informative interactive h r diagramlets take a closer look at this guide.

We can find the masses and diameters of stars that are in eclipsing binary systems. Back to astronomy home page. These constant radius lines go from the upper left to the lower right negative slope of the diagram. The fact that the h r diagrams for the nearby stars the pleiades star cluster and the m3 star cluster are all different leads us to look for other differences in these groups of stars that might explain it.

Compared with the spectral lines in the solar spectrum lines in a supergiant stars spectrum are. On the h r diagram lines of constant radius slants down from left to right. From the relationship between radius temperature and luminosity in equation a we see that at each point in the h r diagram there is a unique stellar radius given by r l 4 s t 4 12. Stars fall into three general categories.

It turns out that the difference is the age of the stars. Lets now add to the diagram lines of constant radius. These categories are main sequence stars red giants and white dwarfs. The luminosity of a star is the total amount of energy it radiates each second.

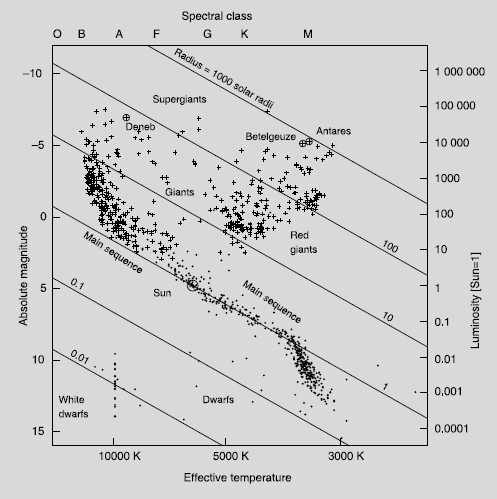

The hr diagram becomes a calculating tool when one realizes that temperature luminosity and size radius are all related by stefan boltzmanns law. Figure 1219 shows these constant radius lines on the h r diagram.
