Accel Tach Wiring Diagram

Before purchasing a tach adapter try connecting your tachometer trigger wire to the green wire of the 275 or 300 ignition controls.

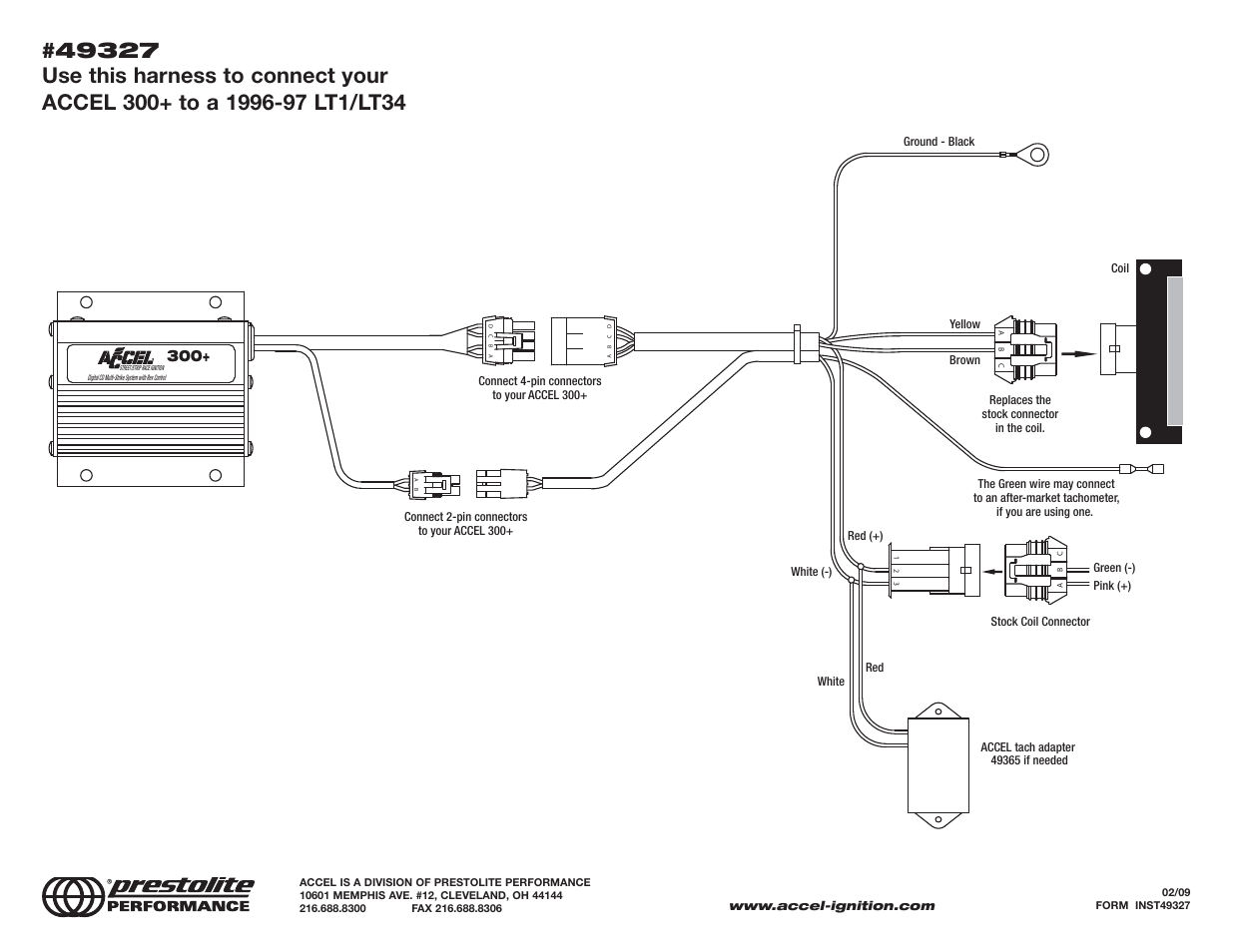

Accel tach wiring diagram. It can also be used to shift gears at the right time during. If your car doesnt have one its a good way to keep an eye on your engine speed. Wiring connect the tachometer wires as shown. A tachometer is used to indicate the revolutions per minute rpm being performed by a car engine.

For chrysler blue gold and silver. The pistons inside the engine pump the crankshaft to spin. This article on how to wire an electronic tachometer doesnt have anything to do with project x other than that 57 is the granddaddy to super chevys chevelle. If your tachometer fails to operate with the 275 or 300 installed you may need an accel or mallory tach adapter.

How to install wire up a tach tachometer the right way gm for beginners diy duration. Accel laser i ii and bei ignitions are compatible with the auto. This tachometer is factory calibrated for 8 cylinder engines. Every engine spins within the limits of its design.

Most cars with automatic transmissions are not equipped with a tachometer since a tachometer is mostly used to indicate visually when its time to shift gears. For operation on 4 or 6 cylinder engines a switch adjustment must be made. A tachometer counts the number of rotations the crankshaft is making a minute rpm. The wiring diagram shown is a typical installation.

This spinning crankshaft sends horsepower to the street.
